Downpipe filter for filling rainwater barrels

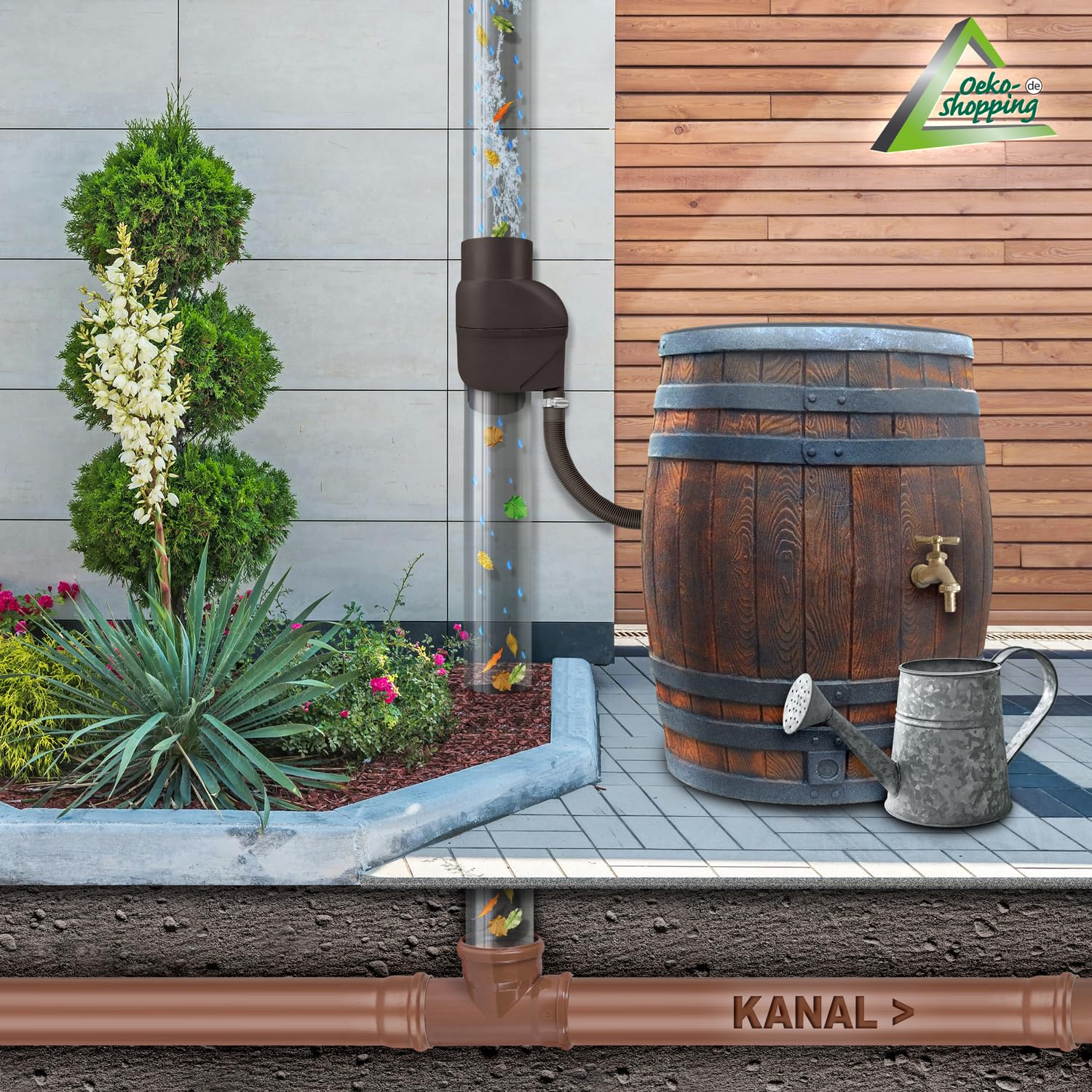

The rain filter T33 is installed in the downpipe of the rain gutter. There it filters leaves, insects, grains of sand and other particles from the rainwater. Thus the rain barrel is always filled with clean water.
The universal connection makes the rainwater collector suitable for downpipes with RG 75 to 110 mm outer diameter. The filter fineness is given by the mesh size of 200µm (0.1mm) of the stainless steel sieve. The rainwater filter is suitable for roof areas of up to 80m2.

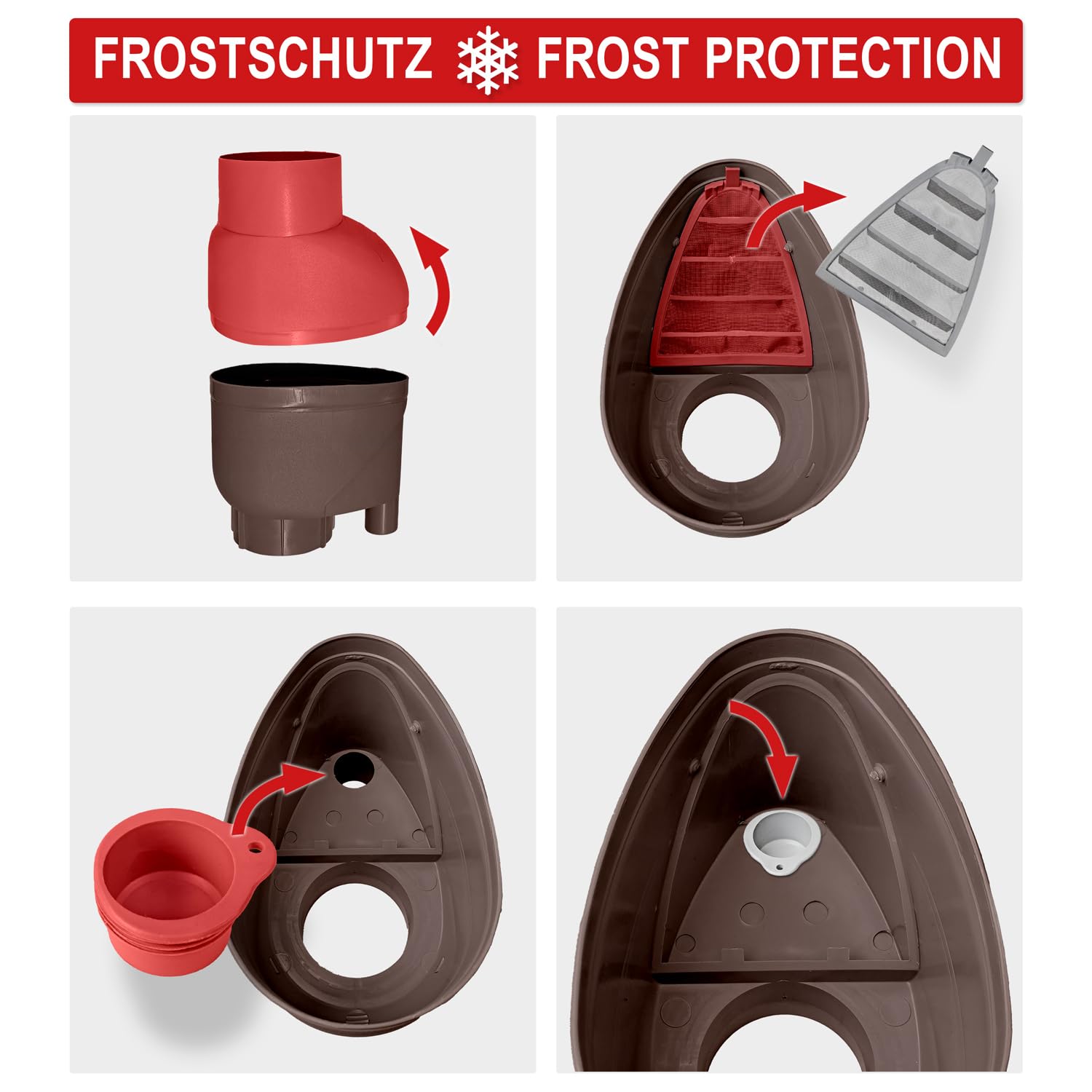

The filter is equipped with an automatic filling stop. Installed in the downpipe at the appropriate height (observe installation instructions), the filter automatically ensures that the rain barrel does not overflow. The connection accessories are included in the scope of delivery, such as wall duct, corrugated hose, clamps, rubber seal and winter plug.
In addition, the filter has very good self-cleaning properties. Compared to other filters, the efficiency is very high at over 90%.

Scope of delivery:

2 pcs. Downpipe filter T33 grey

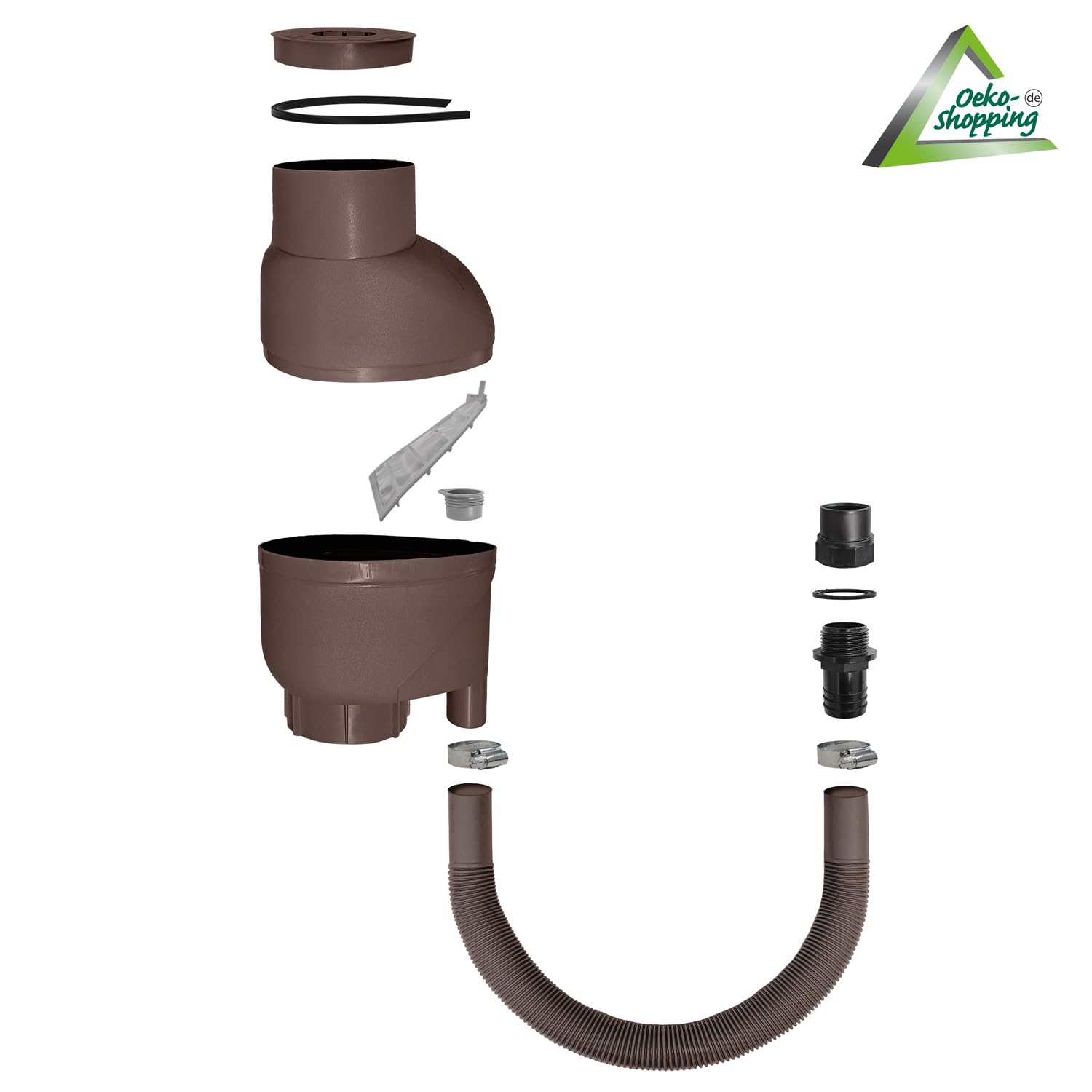

incl. complete connection accessories (wall bushing, corrugated hose, clamps, rubber seal, winter plug)
Installation / Assembly Instructions (english, german)

Technical data:

self-cleaning design
Efficiency over 90%
Stainless steel sieve, indestructible

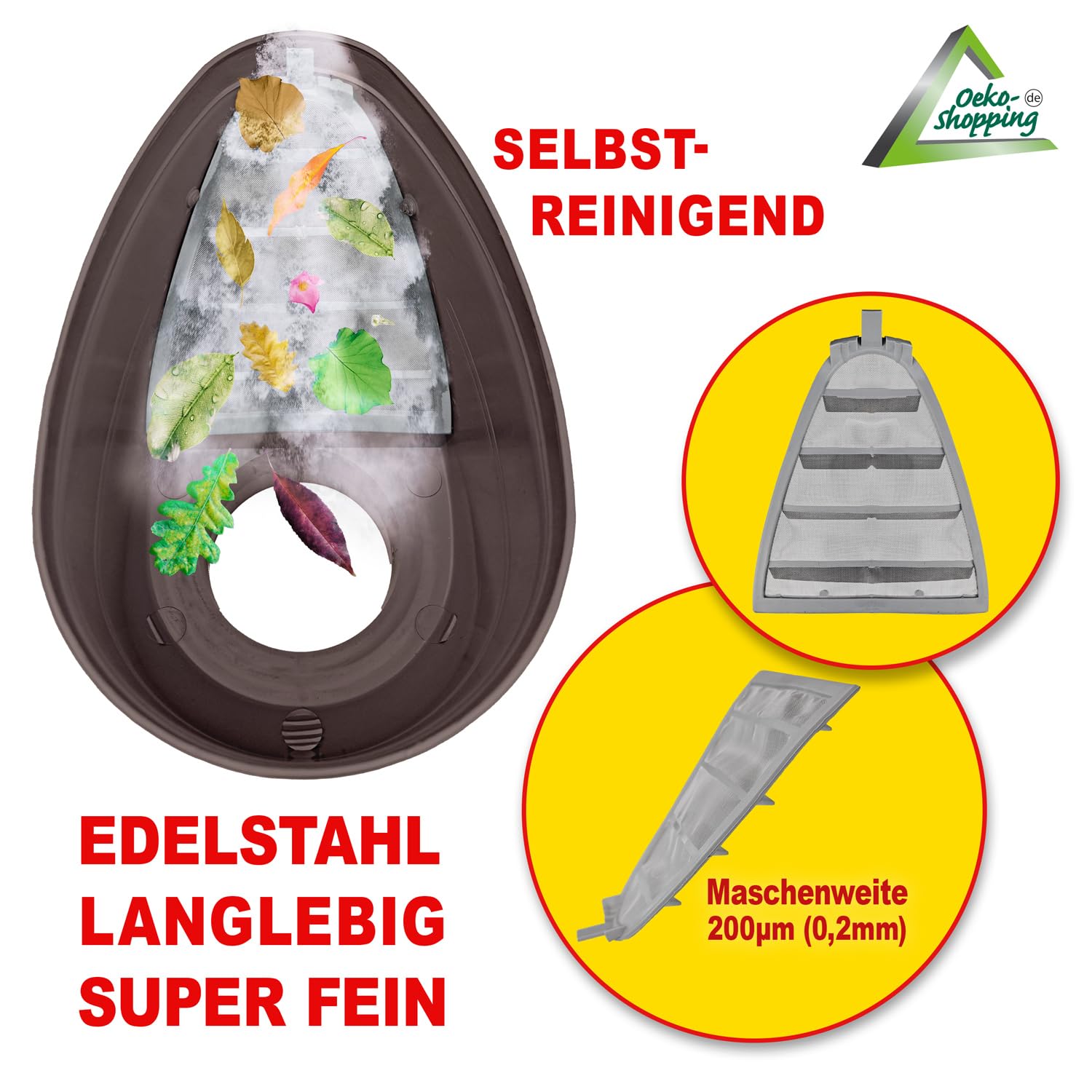

Filter fineness / mesh size 200µm (0.2mm)
for roof areas of up to 80m2

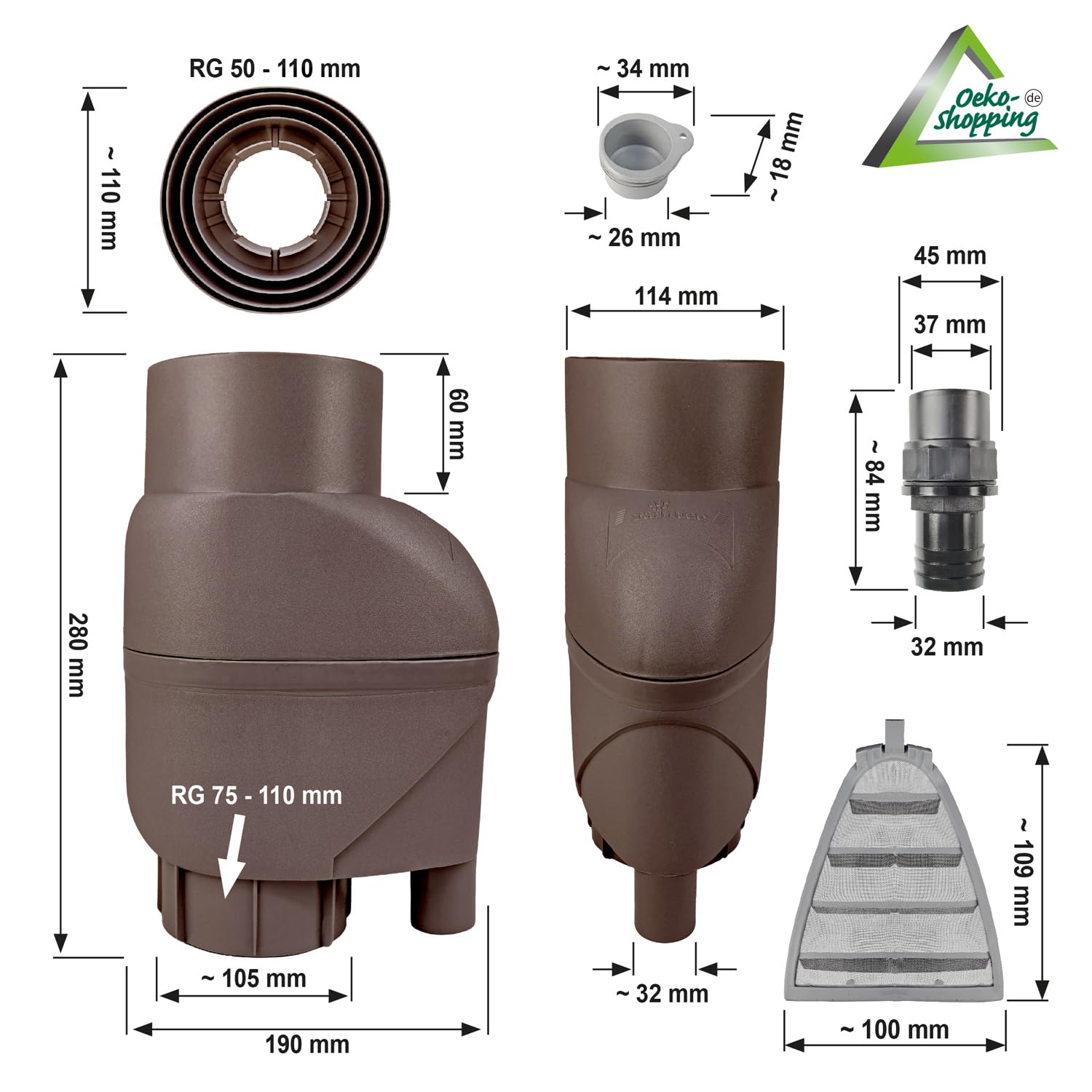

Universal connection for round downpipes with RG 75-110mm outer diameter
UV-stable PP, 100% recyclable
Connection to rainwater storage tank:
Spigot for 3.2 cm (5/4") hose
3.2 cm (5/4") hose, approx. 55cm long, grey
Wall duct for rain barrels 32 mm with threaded nut
