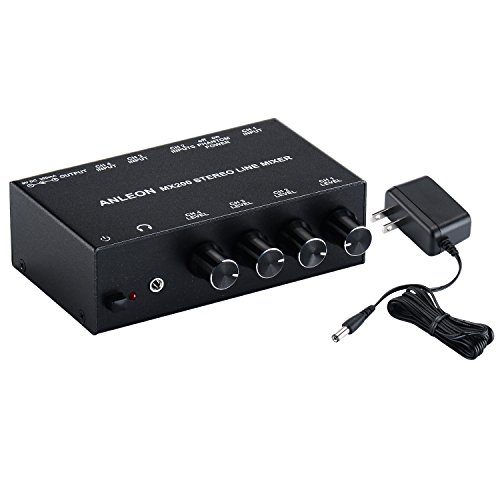

The is a four channel mixer with individual volume controls. The unit has one microphone XLR input along with an 1/8” input and 3 sets of stereo RCA inputs. The unit has a Stereo RCA jacks and a headphone /line output. The MX200 is a useful audio tool for any situation where multiple consumer-level products need to be summed to a single stereo output. DESCRIPTION DC power input: For connection to the power adapter which is included in the package. Output: Stereo RCA jacks for connection to amplifier. CH 4 INPUT: Stereo RCA jacks CH 3 INPUT: Stereo RCA jacks CH 2 INPUT: Stereo RCA jacks and one 1/8” jack (paralleled) PHANTOM POWER: For CH 1 microphone CH 1 INPUT: XLR jack for connection to a microphone. Power button: Press to turn on/off. Headphone /line output: 1/8” Stereo jack for connection to stereo headphones or amplifier. CH 1,2,3,4 LEVEL: Adjusts the volume level of channel 4. SPECIFICATIONS Input Impedance:10kΩ unbalanced each jack CH 1 Gain: 32 dB XLR jack (highest gain) Phantom Power :for CH 1 microphone XLR CH 2,3,4 Gain : 26 dB each RCA Output : RCA and 1/8” stereo S/N Ratio: >90 THD : <.008% Power : 9V DC Weight : 0.45kg Product Content MX200 Stereo Line Mixer *1 100V-240V US Power supply adapter
K**3
Perfect for hooking up 2 computer to one set of powered speakers or amp.
having 2 actual line level inputs works great. The other mixer I had only had 1 line and 2 mic/line which didn't quite work that great. If you are only using actual line inputs, this is the box that will do it. Nice work ANLEON.
A**E
Works good
Worked to allow Alexa to play over my home theater on two channels simultaneously with my streaming device.
C**E
2 computers 1 speaker
Easy to setup. I use it to hook up two computers to 1 set of speakers. Great product so far. RCA hook up is in stereo. I can still hook up two more things.
N**K
Cool design with a fatal flaw
Cool features and design but I experienced an overall volume loss when I plugged headphones in. That worried me as to the integrity of the device wiring and I returned it.
A**R
Small and works well
Very good for what i needed it for. Small, boost the sounds to the right level and you can have tv plus music plus a mic . Playing at once
C**A
Multiple audio into one output
Excellent way to sum multiple audio sources into one output. I’m sending audio from a DVD player, game console, and TV box into my computer, allowing me to have everything in one pair of headphones. Handy
B**N
Perfect for Alexa
Perfect little solution to be able to have Alexa and other audio sources play at the same time.
J**K
Power button would not stay engaged.
Product works well, but had to give it to two stars power button does not stay engaged for power right out of the box had to put tape over it so it would supply power, did not send it back so I can’t complain about the return process, to much of a haste to deal with.
