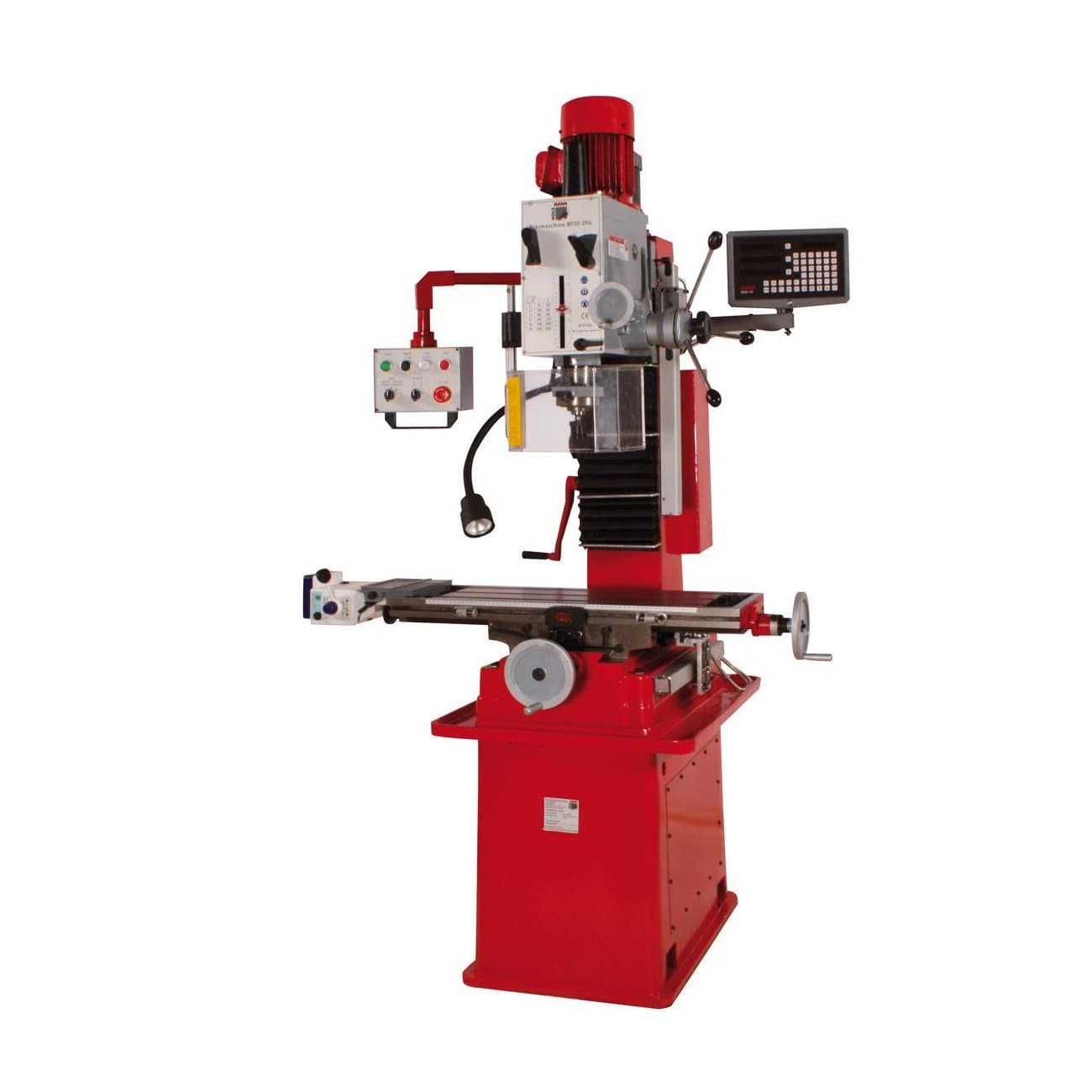

max. drill capacity cast iron 45mm steel 32mm max. face mill diameter 80mm max. end mill diameter 32mm spindle taper MT4 spindle stroke 120mm max. distance spindle to table 285mm speed range I 75,180,280,600,1000,1600 II 150,360,560,1200,2000,3200 head rotation +90° to -90° table size 800x240mm work table cross travel 230mm work table longitudinal travel 560mm T-nut size 14mm motor power S1(100%)/S6 0,85kW/ 1,2kW 1,1kW/ 1,5kW packing dimension: 850x760x1150mm weight (NW/GW): 350/400kg »» Powerful and cost effective milling machine perfect for professional use. »» automatic x-axis feed and adjustable milling head. »» equiped with 3-axis DRO with slewable control panel »» Included in delivery: 3-axis DRO system, lift height adjustment of milling head, milling table power feed, drawbar M 12, reducing sleeve MT2/3, taper shank for drilling chuck, keyless drilling chuck Ø 1-13mm, arbor, t-slot bolt M12x55, tilted wedge, spanner 22-24, oil gun »» Foto inkl. stand BF 50DIGMS optional: masiv stand BF 50DIGMS with large chip collecting tray 399,-
