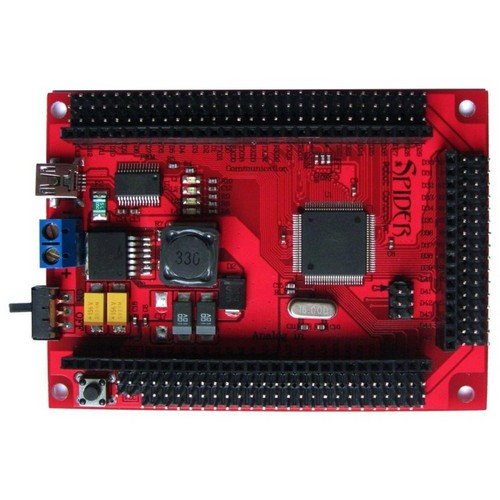

Atmega1280 Mcu With 128K Flash, 8K Sram And 4K Eeprom. Drive Up To 48 Servos 3A, 5V Switch Mode Power Supply. Input Voltage: 7V To 30V. Arduino Compatible. The Dagu Spider Robot Controller Is An Arduino Compatible Robot Controller Designed Specifically For Robots That Use A Large Number Of Servos Such As Humanoids, Hexapods And Serpents. Features: 70 I/O Pins Terminated With A Servo Compatible 3 Pin Male Header And A Female Header Usb Interface And Isp Socket. Power Switch And Reset Button. Pin Spacing Allows Custom Shields To Be Made Using Standard Prototype Pcb'S . Comes With Arduino Bootloader Installed 16X 10 Bit Analog Inputs Up To 15X Pwm Outputs (Depends On The Number Of Servos In Use) 4X Serial Ports (1 Used By Usb Interface) 1X I?C Interface Can Drive Up To 48 Servos Using The Arduino Servo Library.
