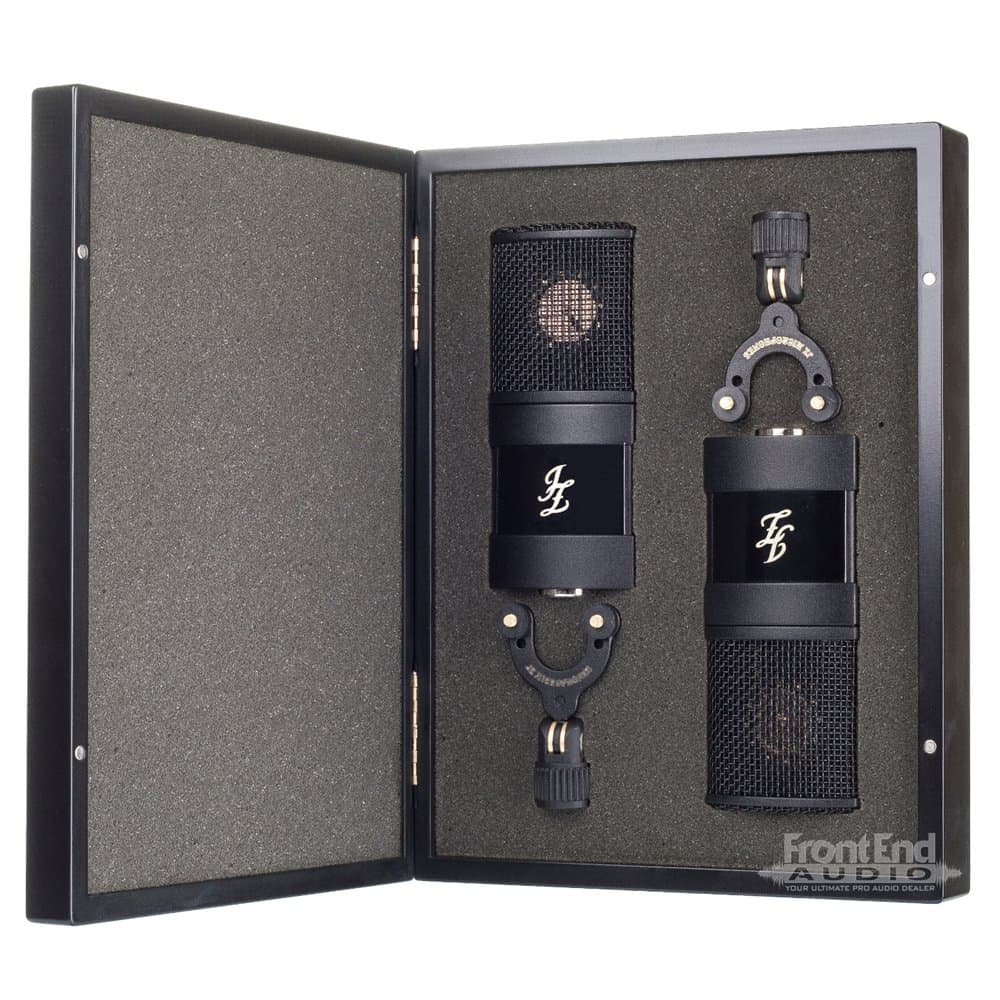

The JZ Microphones V11 Microphone is a turning point for the praised Vintage series with an absolutely new microphone design, which follows the same vintage traditions and qualities as all JZ Microphones products, but is not a version or replica of a classic and legendary microphones like the U47, U67 or C12. The number 11 stands for 2011 as reference year when a new classic microphone has been created. Vintage 11 is dedicated for everyone who loves recording in the highest quality possible and wants something better than all known studio standards. The Vintage 11 even has a budget-friendly price.JZ Microphones V11 Microphone SpecificationsTransducer type: ElectrostaticOperating principal: Pressure gradientDiaphragms active diameter: 27 mmFrequency range: 20 Hz to 20 kHzPolar pattern: CardioidOutput impedance: 50 ohmsRated load impedance: 1000 ohmsSuggested load impedance: >500 ohmsSensitivity at 1000 Hz into 1000 ohms load: 22 mV/PaS/N Ratio CCIR 468-3 weighted: 76.5 dBS/N Ratio DIN/IEC 651 A-weighted: 87.5 dB-AEquivalent noise level DIN/IEC A-weighted: 6,5 dB-AMaximum SPL for 0.5% THD at 1000 ohm load: 134 dBDynamic range of the microphone preamplifier: 128 dBPhantom powering voltage on pins 2 & 3 of XLR: +48 V (+/-4 V)Current consumption: <2 mAOutput connector: 3-pin XLR male, gold plated contactsSignal polarity: Positive toward pressure on a diaphragm produces positive polarity voltage on XLR pin #2 relatively to pin #3
