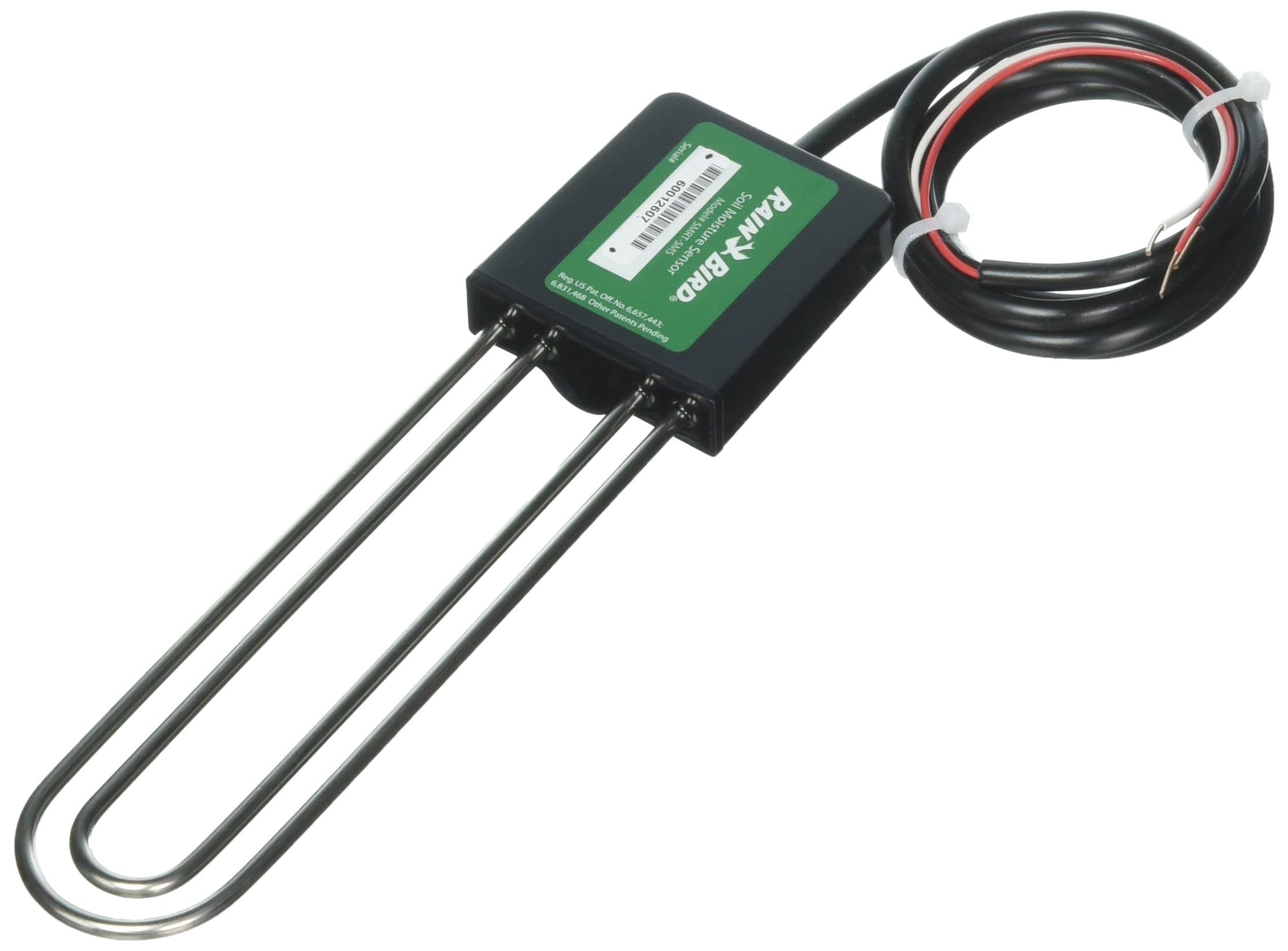

Rain BirdSMRT-Y Soil Moisture Sensor Kit

Q: Will this work with an older rain bird controller--esp-modular?

Yes, works with all Rain Bird controllers and all other brands of 24V output controllers. Thank you

Q: Would this rain bird smrt-y soil moisture sensor kit work inside a greenhouse with raised beds?

I don't see why it wouldn't. It measures the moisture in the soil regardless of the environment. I followed my neighbor's lead and am using it for regulating irrigation to my shrubs and trees (a separate sensor for each because the sensors are buried to different depths) in the Phoenix desert. I'd say the critical issues are to follow the wiring diagram very carefully and then calibrate the sensor to meet your requirements. I found the best way to calibrate the sensor was to place it in a 3 lb. coffee can filled with soil and adding moisture to it. Calibration will go much faster than calibrating it after it is already in the ground because the smaller amount of soil will dry out faster.

Q: I have 6 zones. The wiring diagram shows, what appears to only show one connection to one zone. Does it still control the other zones? Don't see how..

It controls the other zones through the common wire. You have to disconnect the previous common wire from sprinkler controller and connect the common wire (black color) that comes from Smart-Y to sprinkler controller. The Smart-Y has another common wire (white color) that connects to the sensor AND the solenoid (the zone you choose to connect to the sensor). All the solenoids’ common wires are connected to this white wire. So now all the solenoids common wires go to Smart-Y first and then through Smart-Y go back to sprinkler controller. When the sensor tells the Smart-Y that the moisture is above threshold the Smart-Y shuts off the common wire so there will be no current pass all the solenoids, resulting all the zones shot off . You can have two zones (which are independent of the Smat-Y) override the Smart-Y by connect blue and brown wires to the zones respectively. The sensor is stable and accurate. I bought three of them and use them to monitor soil moisture in different areas. Good luck for your project.

4.2/5

Product ID: 109187096

Secure Transaction

Details

Brand
Rain Bird
Item dimensions L x W x H
7.6 x 10.2 x
Material
Plastic Metal
Measuring range
0% - 100%
Mounting type
Surface Mount

💧40% water savings

📏7.62 cm dimensions

⚙️Smart irrigation upgrade

Frequently Bought Together

Rain Bird SMRT-Y Soil Moisture Sensor Kit

Rain Bird FCKIT-1PK Drip Irrigation Easy Fit Faucet Connection Kit for 1/2" Tubing, Includes Pressure Regulator and Filter,black

Rain Bird T22-50S Drip Irrigation 1/4" Blank Distribution Tubing, 50' Roll, Black

Description

🌱 Smart watering for a greener tomorrow!

REAL TIME MONITORING - In-ground soil moisture sensor provides accurate readings for precise irrigation.
USER FRIENDLY DESIGN - Simple installation with two main components for hassle-free setup.
ECO FRIENDLY EFFICIENCY - Achieve typical water savings of 40% or more, making every drop count.
SLEEK CONTROL INTERFACE - Intuitive user interface for easy management of your watering schedule.
TRANSFORM YOUR IRRIGATION - Turn any irrigation controller into a smart system for optimal water usage.

The Rain Bird SMRT-Y Soil Moisture Sensor Kit is designed to enhance your irrigation system's efficiency. With a typical water savings of 40% or more, this kit includes an in-ground soil moisture sensor and a user-friendly control interface, making it easy to monitor and manage your watering needs. Its compact design and reliable performance ensure that your plants receive the right amount of water, promoting a healthier garden while conserving resources.

Specifications

Product Dimensions	7.62 x 10.16 x 7.62 cm; 385.55 g
Part number	5007798500694
Material type	Plastic, Metal
Manufacturer	Rain Bird
Item model number	5007798500694
ASIN	B003L7CCIW

Have a Question? See What Others Asked

The photo only shows the sensor that is buried in the ground. Is the controller interface that connects to the irrigation controller included also?

Will this work with an older rain bird controller--esp-modular?

Would this rain bird smrt-y soil moisture sensor kit work inside a greenhouse with raised beds?

I have 6 zones. The wiring diagram shows, what appears to only show one connection to one zone. Does it still control the other zones? Don't see how..
